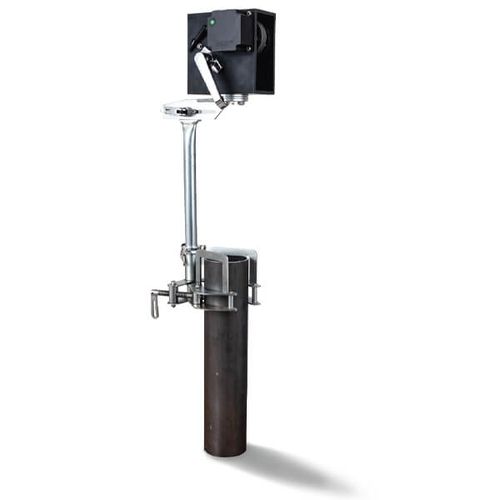

The WDT is a standalone wireless depth tracker with a fixture for mounting on the drill rod collar. The system is built for drillers and is robust, reliable, and simple to use.
The WDT can be operated directly from Inertial Sensing’s Surveyor software for continuous mode gyro surveys. It provides real time depth readings, stored and processed by the field computer. It can also be operated individually using a smartphone app.

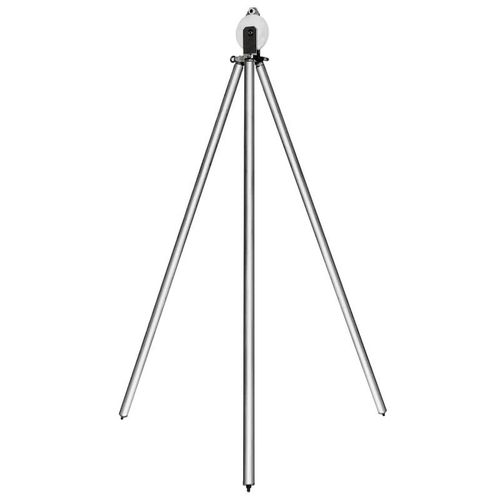

A lightweight tripod allows a single operator to perform a survey in vertical a borehole when the drill rig has already left. The kit consists of:

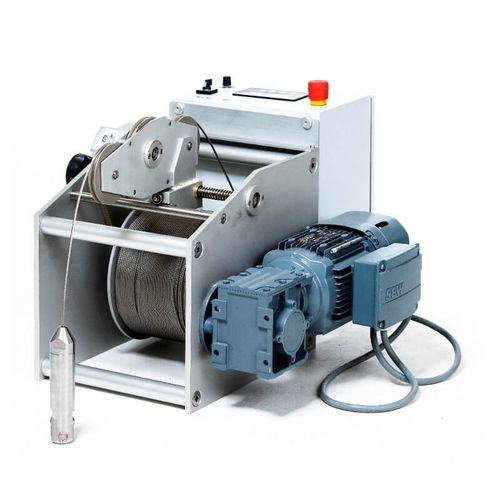

The ADW600 is a compact and portable winch for borehole surveys and logging. It is designed for 600 m of 1/8"-wire rope. The main components are:
A version for geophysical borehole logging with 600 m of 1/8" mono-conductor wireline cable and mercury slip rings is available on request. Contact us for any special requirements.
For oil & gas, geothermal and hot mining applications a heatshield is required. We supply a range of heatshields custom designed for our gyro survey tools. We use only the highest quality products from National K Works. Standard configurations:
| Configuration | Pressure rating | Temperature rating (350F, 180C) |
|---|---|---|
| 1.75” | 22,000 PSI | TwinGyro, 12 hours |
| 1.5” | 7,500 PSI | TwinGyro, 4 hours |
| 1.2” | 15,000 PSI | SlimGyro, 4 hours |
A variety of high quality accessories for use in slickline, E-line and dropgyro applications include:
The Encoder to USB Converter is a converter kit for connecting an existing standard industrial encoder to Inertial Sensing's Surveyor software. It converts the encoder output to USB data for use with continuous mode gyro surveys.
Inertial Sensing is an authorized distributor of Handheld rugged computers and accessories. For all our gyros we recommend the Algiz 10X or Algiz 8X from Handheld for powerful and rugged field performance.
The WDT from Wireline Engineering is a standalone wireless depth tracker with a fixture for mounting on the drill rod collar. The system is built for drillers and is robust, reliable and simple to use.
The WDT can be operated directly from Inertial Sensing Surveyor software for continuous mode gyro surveys. The WDT provides real time depth readings from the rig winch stored and processed by the field computer. It can also be operated individually using a smartphone app.
The Mazac Smart Aligner is a lightweight and smartphone enabled drill rig GPS alignment solution for surface applications.
The Smart Aligner has a compact design, great performace and multiple configurations and is the smartest solution to align a surface drill rig.
The winch is designed for 600 m of 1/8"-wire rope.
The main components are:
A version for geophysical borehole logging with 600 m of 1/8"mono-conductor wireline cable and mercury slip rings is available on request. Please contact us for any special requirements.
Gyro-Services' lightweight tripod allows a single operator to execute a survey in vertical a borehole when the drill rig has already left.
The kit consists of:
The new Surveyor platform for gyro surveying has all the features of the older isSurveyor simplified with fewer steps to start a survey. In addition Surveyor has the new continuous survey mode and can also be used with the TwinGyro.
The old isSurveyor platform does not support continuous surveys and not the TwinGyro, but it is compatible for regular multi-shot surveying with all isGyros and SlimGyros.
isAnalysis software allows users to visualize, edit, correct, group and export their survey data. It can also import data from other surveying tools, Excel spreadsheets or text files. This allows easy addition of data from other tools and reference data to create a single exported spreadsheet. isGyro surveys can also be reprocessed in a batch. All data is quickly regenerated by the single click of a button, with automatic updating of all tables and charts.
The Encoder to USB Converter is a converter kit for connecting an existing standard industrial encoder to Inertial Sensing's Surveyor software. It converts the encoder output to USB data for use with continuous mode gyro surveys.
For the TwinGyro, SlimGyro and isGyro we recommend the powerful Algiz 10X from Handheld.
Algiz 10X spec sheet
