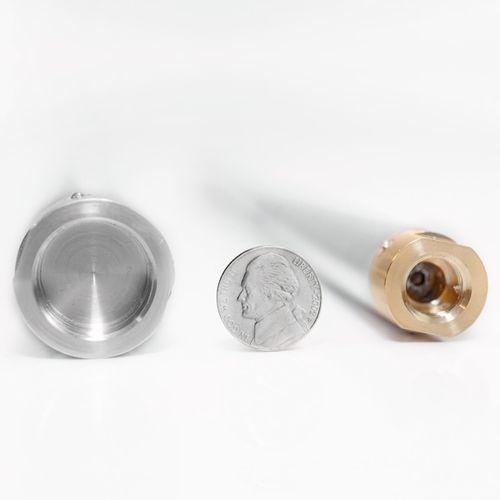

Non-integrated gyros

Our range of survey gyros are also supplied in non-integrated versions, primarily to meet the needs of users that must mount the gyro in a customized running gear design or for geothermal and oil & gas work where a tailored heatshield is required for hot holes.

All current versions of Inertial Sensing gyros can run in both standard multi-shot mode as well as fast continuous survey mode. Data from a continuous survey can easily be reprocessed to any required station interval.

No special pre- or post-survey procedures are necessary to get into the hole. The simple set-up saves valuable site-time and potential sources of human error are significantly reduced. The modular design of the tools minimizes repair time and cost.

Non-integrated Gyros

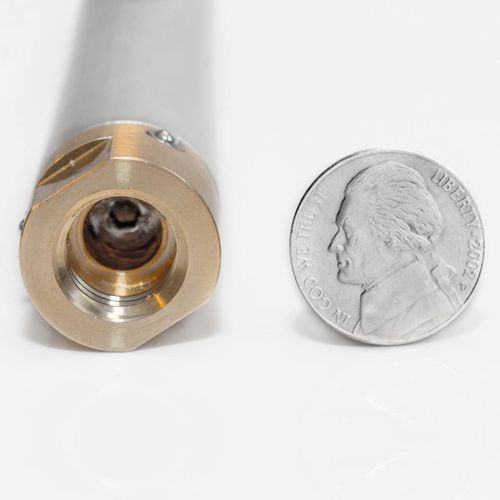

SlimGyro Inertial Sensing

SlimGyro

The SlimGyro is a versatile ultra-slim survey tool that can be configured for a wide variety of survey applications. It is ideal for any surveys inside narrow diameter rods, including blasting, diamond drilling, RC drilling, grouting and oil & gas wireline and drop-gyro surveys. With its extremely low power consumption the SlimGyro can survey for up to 100 hours on a single battery charge. Standard running options include:

  • 26 mm running gear for mining and civil engineering
  • 1.2 inch heat shield for oil & gas and geothermal applications

With a 21.56 mm diameter the SlimGyro can also be housed in customized running gear designs.

TwinGyro

The TwinGyro is a unique survey tool that contains two independent gyro survey systems in one unit. It is ideal for surveying where there is only one chance to survey a hole, such as very deep oil & gas drop-gyro surveys. It is also perfect where time is of the essence and two surveys need to be obtained in one run, such as in long coring holes where into and out of hole runs consume too much time. The TwinGyro is ultra-rugged with a survey time of 50 hours per battery charge. Standard running options include:

  • 38 mm running gear for mining and civil engineering
  • 1.75 and 1.5 inch heat shields for oil & gas and geothermal applications

With a 31.7 mm diameter the TwinGyro can also be housed in customized running gear designs.

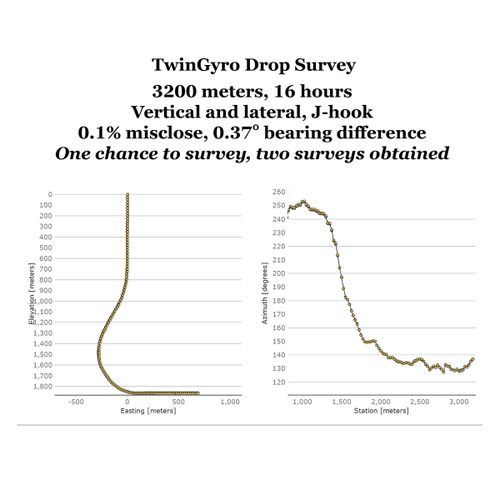

TwinGyro Drop Survey

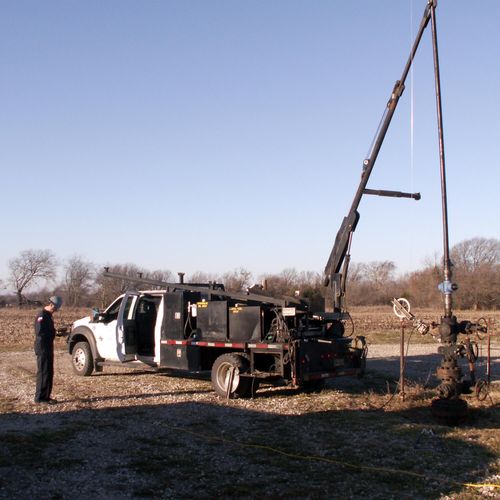

Standard isGyro

isGyro

The standard 31.7 mm isGyro has been the workhorse of our products for over a decade. It is ideal for surveying in all applications that do not have high requirements on slimness or increased data collection. It is highly suited to operations requiring mounting in heatshields or customized running gear. Standard running options include:

  • 38 mm running gear for mining and civil engineering
  • 1.75 and 1.5 inch heat shields for oil & gas and geothermal applications

With a 31.7 mm diameter the isGyro can also be housed in customized running gear designs.
