LiPAD-100™

  • GYROCOMPASS ALIGNMENT

    The LiPAD-100 delivers unmatched accuracy for borehole surveys and alignment tasks.

    The LiPAD-100 delivers unmatched accuracy for borehole surveys and alignment tasks. Compact yet precise, it pairs seamlessly with survey gyros for real-time data display and quick alignment, even in vertical applications. Lightweight for easy one-handed use in any environment exposed to, water, sand and dust. Application Guide: All survey and alignment application.

    ⚙️ Lower power Bluetooth ⚙️ Fully integrated

    ⚙️ Lightweight ⚙️ Modern magnetic technology

Download Datasheet ↓
A construction worker in a high-visibility yellow jacket and white helmet kneels on rocky ground, using a portable laser scanner labeled 'LIPAD 100' to measure or scan the site at a construction or excavation site surrounded by rocks, tools, and equi

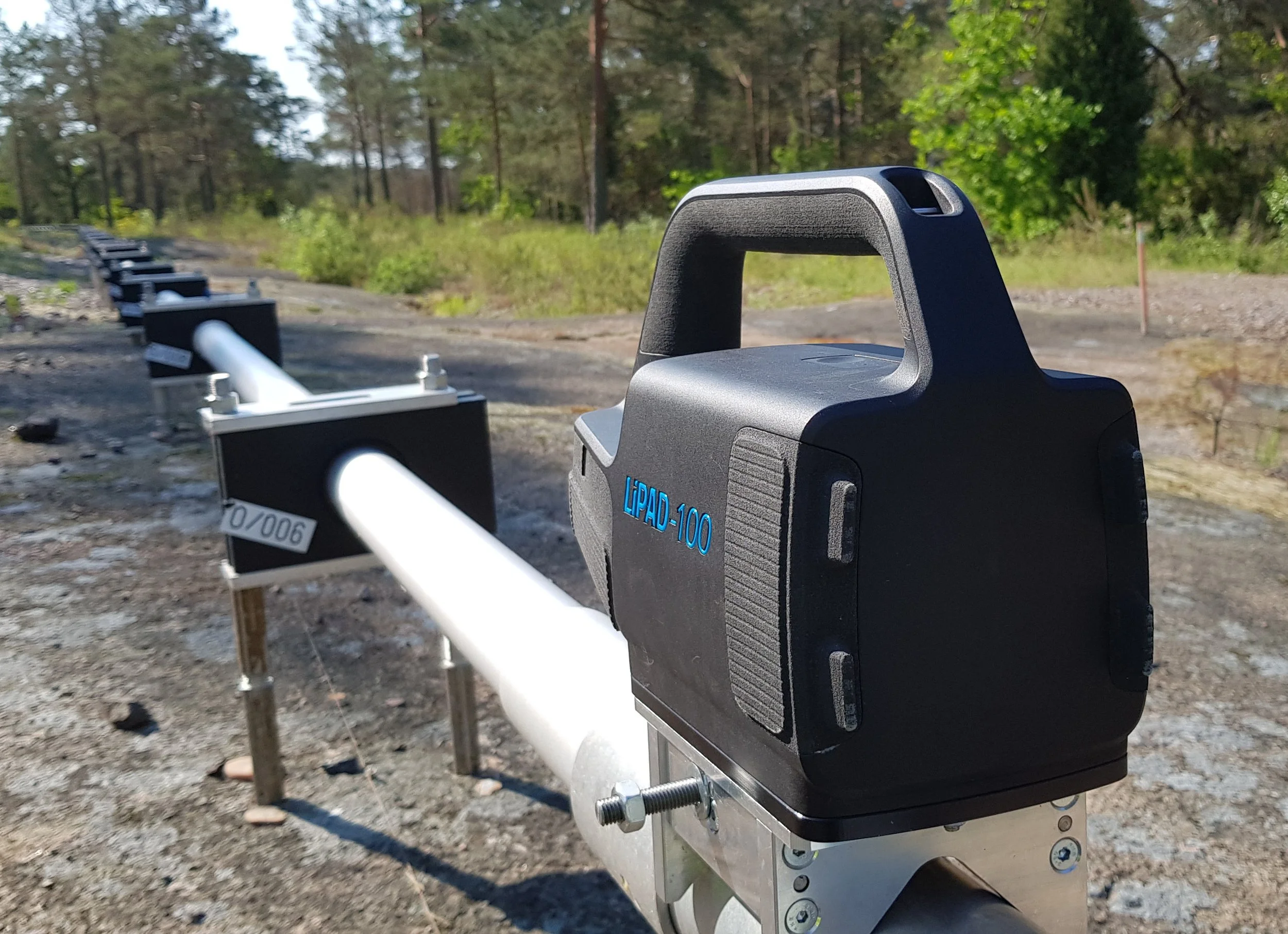

A surveying instrument mounted on a stand outdoors, with a wooded background and a clear sky.

TECH SPECIFICATIONS

  • Dimensions

    Size: 325 mm x 215 mm x 143 mm

    Weight: 4.60 kg

  • Accuracy

    Inclination: ± 0.05°

    Azimuth: ± 0.35° sec lat

    North seeking time: <5 minutes

    Latitude input required: yes

  • Performance

    Temperature Range: -20°C to +60°C

    Inclination range: All angles

    Runtime: 6-8 hours

    Battery time: 3 hours each battery

    Battery type: Lithium - ion rechargeable

    Communication: Bluetooth

    Environmental rating: Water, sand and dust proof rating IP 64, Shockproof 30 g / 20 ms

  • Control

    Software: Android App

    Data management: SurveySafe cloud portal system

    Recommended: Honeywell Scanpal, fully rugged handheld, (MIL-STD-810G)

DOWNLOAD DATASHEET ↓
