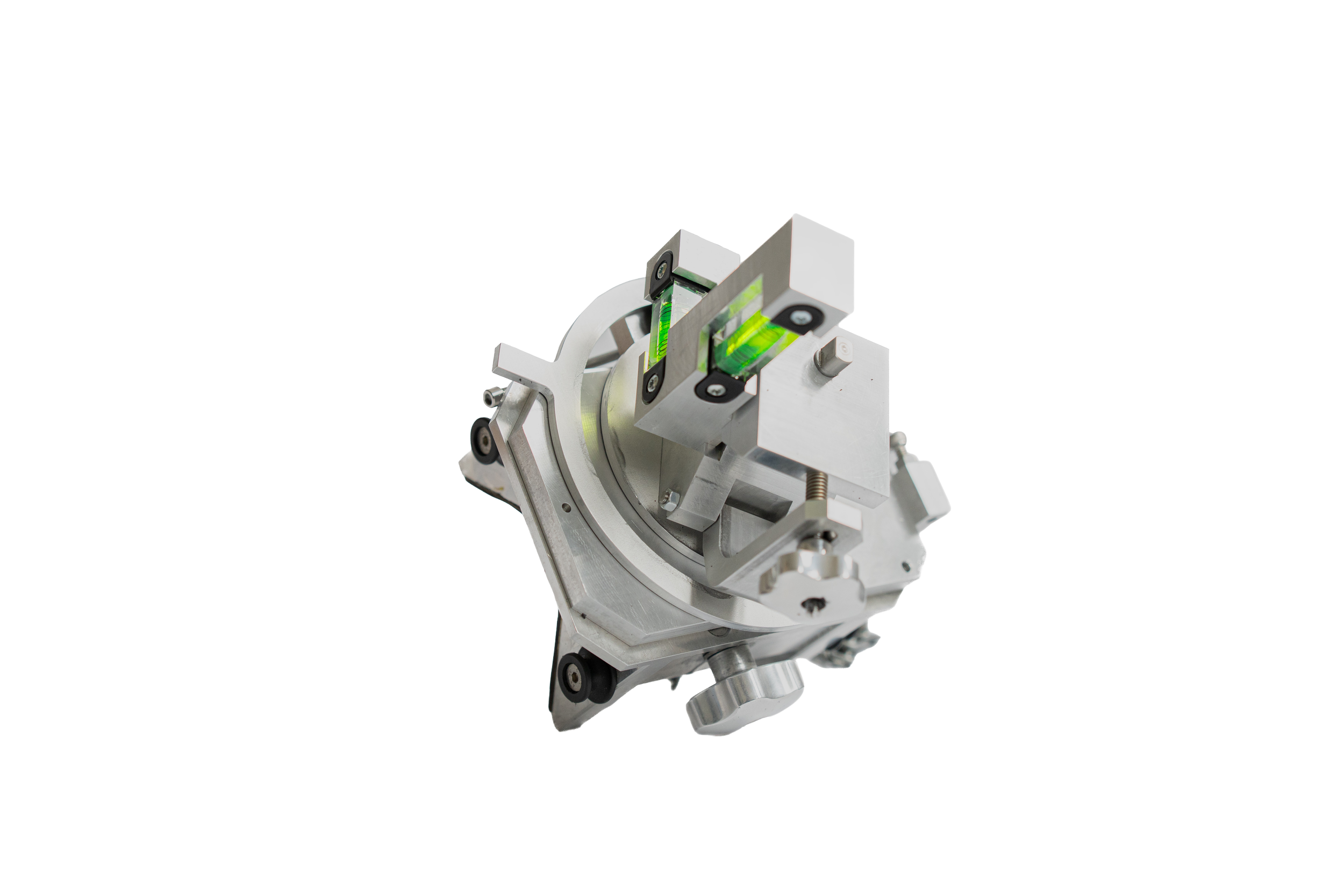

The NF Rig Aligner™ delivers universal accuracy for alignment and northfinding in all mining applications.

Simple yet effective, it pairs with the NorthFinder™ for quick alignment from vertical to horizontal applications. Secure your results in any environment

Application Guide: Mining applications

⚙️ Simple to use ⚙️ Non-battery alignment

⚙️ Continuous surveying ⚙️ Vertical to Horizontal

Fully integrated config

Diameter: 25 mm

Length: 1250 mm

Weight: 6.05 kg

Accuracy

Inclination: ± 0.10°

Azimuth: ± 0.50° seclat

Gravity high side: ± 0.15°

Gyro toolface: ± 0.50° seclat

Position accuracy: < 0.2% (2m/1000m)*

Rate range: ± 1000°/s

Inclination limit: < 70° from vertical (continuous ±90°)

Gyro compass time: under 5 minutes

Performance

Temperature Range: -20°C to +70°C

Modes of operation: Memory, SingleShot, Continuous, MultiShot & Orientation

Battery time: 30 hours

Battery type: Rechargeable NiHM

Communication: Bluetooth

Power consumption: 1.5 W

Control

Software: Surveyor, Windows 10 & 11

Data management: SurveySafe cloud portal system

Recommended: Getac UX10, fully rugged handheld, (MIL-STD-810G)

* Depending on borehole profile and survey procedure
