Next gen NorthFinder™ with minimal weight, and real time trajectory

Powered by hybrid MEMS/FOG technology, the second-generation NorthFinder™ delivers continuous true north alignment and real-time DTH processing for reliable daily performance.

No enconders needed

TrueDepth™ perfectly syncs your continuous trajectory data with actual downhole depth, eliminating costly alignment errors.

Unstoppable field endurance

Hybrid MEMS/FOG technology and a 30-hour battery life ensure reliable, real-time DTH processing through your longest shifts.

Why field operators stays confident with the NorthFinder™

Zero friction handling

At just 35 mm and 6.05 kg, the streamline NorthFinder™ finds true north in under 5 minutes, to keep the rig operation moving smoothly.

Unstoppable field endurance

Hybrid MEMS/FOG technology and a 30-hour battery life ensure reliable, real-time DTH processing through your longest shifts.

Zero friction handling

At just 35 mm and 6.05 kg, the streamline NorthFinder™ finds true north in under 5 minutes, to keep the rig operation moving smoothly.

No enconders needed

TrueDepth™ perfectly syncs your continuous trajectory data with actual downhole depth, eliminating costly alignment errors.

What TrueDepth™ does

Traditional blasthole surveys need a physical depth encoder attached to the feeder reel. TrueDepth removes it entirely. The gyro measures its own depth while it surveys.

⌖

Higher accuracy

Eliminates both external rod slack error and in-hole rod sag error. Delivers true high-density continuous results, especially in up-holes and horizontal holes.

✓

Simple workflow

No extra steps, no Bluetooth encoder to pair, no cable to connect. The survey procedure stays exactly the same, just with less to go wrong.

⌖

Documented accuracy

♺

Designed to last

⛳︎

No encoder needed

⛰

Made in Sweden

Where to use the NorthFinder™

Hybrid continuous gyro with absolute northfinding

True north reference independent of magnetic interference. Critical for deep directional drilling and oil & gas applications.

✓ 35mm diameter ✓ 6.05kg weight ✓ 30h battery ✓ 1250mm length

Inertial Sensing One AB Coring and Diamond Drilling Applications
Inertial Sensing One AB Directional Drilling Applications
Coring / Diamond Drilling
  Directional Drilling
Downhole navigation

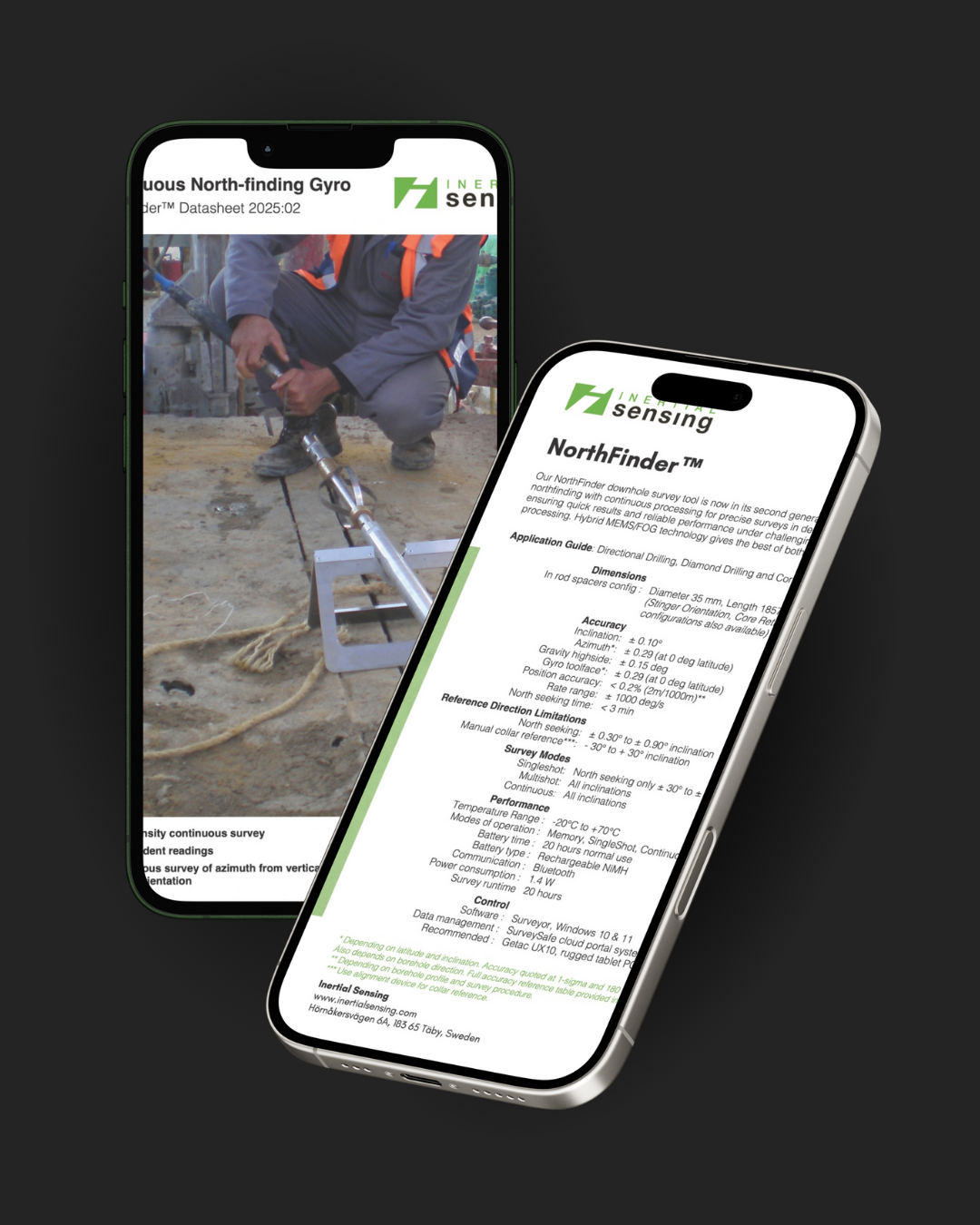

NorthFinder™ technical specifications

  • Fully integrated config

    Diameter: 35 mm

    Length: 1250 mm

    Weight: 6.05 kg

  • Accuracy

    Azimuth: ± 0.50° seclat

    Inclination: ± 0.10°

    Position Accuracy: < 0.2% (2m/1000m)*

    Rate Range: ± 1000°/s

    Inclination Limit: < 70° from vertical (continuous ± 90°)

  • Performance

    Temperature Range: -20°C to +70°C

    Modes of operation: Memory, SingleShot, Continuous, MultiShot & Orientation

    Battery time: 30 hours

    Battery type: Rechargeable NiHM

    Communication: Bluetooth

    Power consumption: 1.5 W

  • Control

    Software: Surveyor, Windows 10 & 11

    Data management: SurveySafe cloud portal system

    Recommended: Getac UX10, fully rugged handheld, (MIL-STD-810G)

    * Depending on borehole profile and survey procedure

In-house expertise

No robots, no automated hold music. With us, you will be connected right away to a real human, who knows just what your drill-site needs.

Our business manager can help find a local distributor, send a direct email today to: info@inertialsensing.com

Dr. Dag Billger, Business manager at Inertial Sensing One AB, PhD in Physics
Dr. Duncan McLeod, CEO at Inertial Sensing One AB

FAQ’s


1

Why choose a continuous gyro over magnetic surveying for my site?

Because magnetic tools fail in disturbed ground.

While magnetic surveying is cost-effective in clean boreholes, it is virtually useless near steel casing or iron formations. The NorthFinder™ uses angular rate sensors to provide azimuth data completely independent of any magnetic field, making it the correct choice for deep directional drilling or when magnetic interference is present.


2

What does the NorthFinder™ offer over standard GPS rig alignment?

Absolute precision underground, without satellite reliance.

Standard GPS alignment is limited to the surface and can fail in remote or rugged terrain. Because the NorthFinder™ is a continuous north-finding gyro, it continuously calculates a "dead reckoning" position without needing a GPS signal. It automatically establishes true north directly down the hole, giving you verified trajectory data in any environment.


3

Will vibration or harsh downhole conditions affect the accuracy?

Not with Hybrid MEMS/FOG technology.

Standard solid-state sensors can drift or lose accuracy under heavy vibration. The NorthFinder™ integrates proprietary hybrid MEMS/FOG technology to give you the best of both worlds, combining extreme ruggedness with the uncompromising precision of a fiber-optic gyro. Furthermore, it is explicitly built to deliver reliable performance under challenging conditions.


4

How long does the tool take to find true north?

Under 5 minutes

Field crews frequently ask this because waiting on a survey tool costs the rig money. The NorthFinder™ is designed for rapid deployment, achieving a gyro compass time of under 5 minutes. This enables real-time DTH processing without halting your drilling program.


5

Can it handle long continuous shifts without recharging?

Yes, the NorthFinder™ can survey for 30 hours straight.

You shouldn't have to trip a tool out just because the battery died. Engineered with advanced low power technology (consuming just 1.5W), the NorthFinder™ delivers 30 hours of continuous battery life. You can run high-density continuous surveys shift after shift without interruption.
