The world's slimmest Gyro™

The SlimGyro™ at just 25mm, offers unmatched precision, with its world leading performance to survey narrow boreholes, along with an extended battery charge of 100 hours, to keep your operations moving efficiently.

A legacy of precision

Trusted by senior mine surveyors, it leverages the same core architecture as the BlastGyro to deliver flawless, all-orientation trajectory data in the harshest environments.

100 hour field endurance

Engineered for high-rate continuous surveying with an ultra-low 0.2 W power draw, it delivers 100 hours of battery life to outlast multiple shifts without charging downtime.

Access narrow boreholes

At just 25 mm thick and 2.50 kg, the world's slimmest gyro deploys effortlessly where bulkier tools cannot fit.

When standard tools won't fit, engineers rely on SlimGyro™

Access narrow boreholes

At just 25 mm thick and 2.50 kg, the world's slimmest gyro deploys effortlessly where bulkier tools cannot fit.

100 hour field endurance

Engineered for high-rate continuous surveying with an ultra-low 0.2 W power draw, it delivers 100 hours of battery life to outlast multiple shifts without charging downtime.

A legacy of precision

Trusted by senior mine surveyors, it leverages the same core architecture as the BlastGyro to deliver flawless, all-orientation trajectory data in the harshest environments.

A Legacy of Precision: The BlastGyro® Heritage

The SlimGyro™ utilizes the core inertial navigation architecture that powers the BlastGyro™, the industry standard for high-volume underground blast hole surveying. Originating in demanding oil-field applications and refined for subterranean environments, it brings heavy-duty operational reliability to the world's slimmest 25 mm profile.

⚡︎

Proven in the harshest blast rings

While other systems struggle with battery life and memory limits, this technology is built to survey entire blast rings in one continuous pass. With an extended 100-hour battery life and virtually unlimited memory capacity, there is no need to pause between holes or swap batteries during a shift.

⌖

Uncompromised all-orientation precision

The system delivers absolute accuracy independent of latitude or complex downhole trajectories. Supported by high-end calibration, the SlimGyro™ sustains high-rate deployments of ±1000°/s to guarantee reliable data capture from perfect vertical to any orientation.

⌖

Documented accuracy

♺

Designed to last

⛳︎

No encoder needed

⛰

Made in Sweden

Where to use SlimGyro™

The world’s slimmest and lightest borehole surveying tool.

Light enough to manage by hand, with ability to reach narrow holes, and versatile modes for wide range of applications.

✓ 25mm diameter ✓ 2.50kg weight ✓ 100h battery ✓ 1390mm length

Inertial Sensing One AB Coring and Diamond Drilling Applications
Coring / Diamond drilling
Blasting / Production
Inertial Sensing One AB Tunneling Application
  RC Drilling
  Tunneling

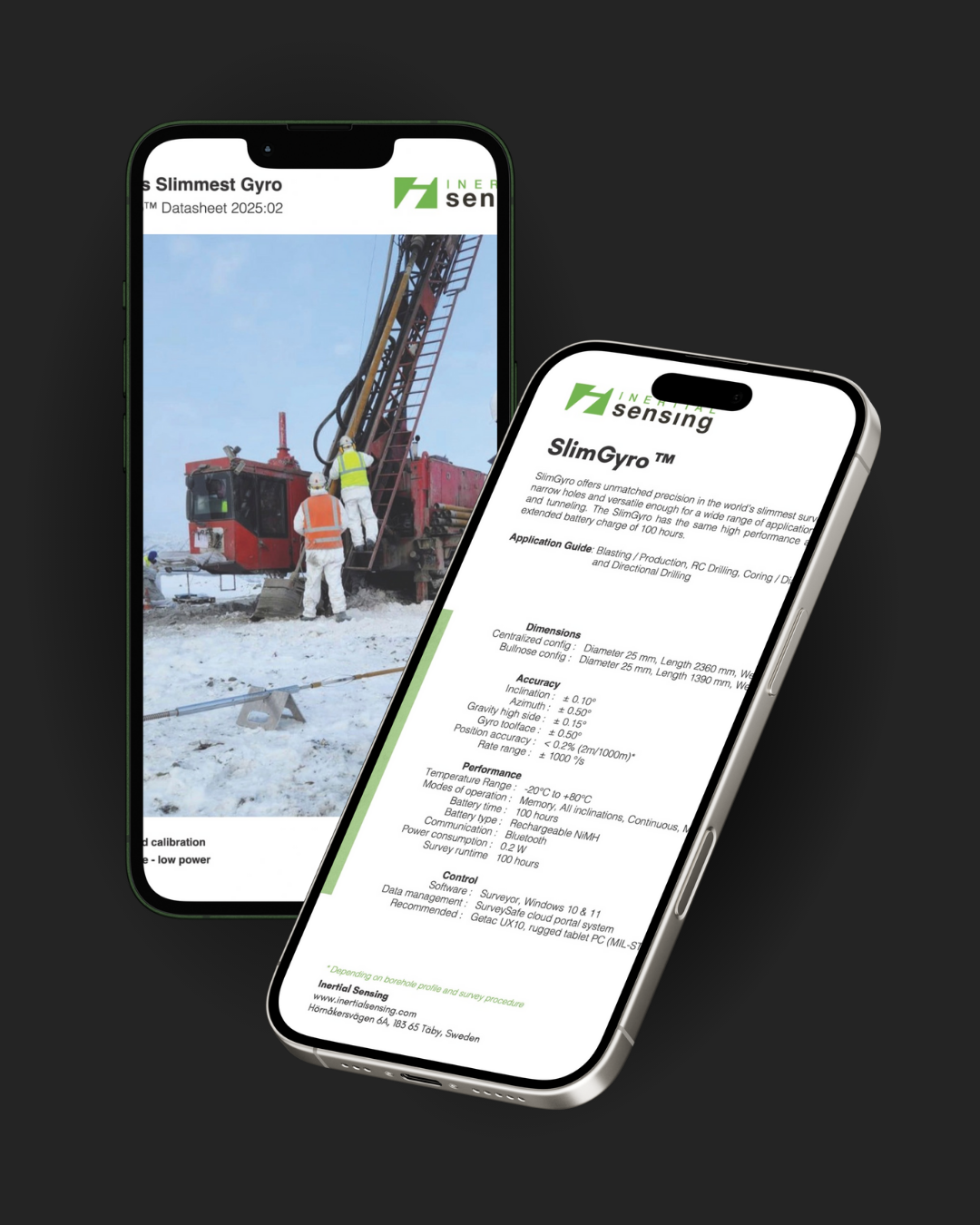

SlimGyro™ technical specifications

  • Centralized config

    Diameter: 25 mm

    Length: 2360 mm

    Weight: 5.20 kg

  • Bullnose config

    Diameter: 25 mm

    Length: 1390 mm

    Weight: 2.50 kg

  • Accuracy

    Inclination: ± 0.10°

    Azimuth: ± 0.50°

    Gravity high side: ± 0.15°

    Gyro toolface: ± 0.50°

    Position accuracy: < 0.2% (2m/1000m)*

    Rate range: ± 1000 °/s

  • Performance

    Temperature Range: -20°C to +80°C

    Modes of operation: Memory, All inclinations, Continuous, MultiShot, Orientation

    Battery time: 100 hours

    Battery type: Rechargeable NiMH

    Communication: Bluetooth

    Power consumption: 0.2 W

  • Control

    Software: Surveyor, Windows 10 & 11

    Data management: SurveySafe cloud portal system

    Recommended: Getac UX10, fully rugged tablet PC (MIL-STD-810G)

    * Depending on borehole profile and survey procedure

In-house expertise

No robots, no automated hold music. With us, you will be connected right away to a real human, who knows just what your drill-site needs.

Our business manager can help find a local distributor, send a direct email today to: info@inertialsensing.com

Dr. Dag Billger, Business manager at Inertial Sensing One AB, PhD in Physics
Dr. Duncan McLeod, CEO at Inertial Sensing One AB

FAQ’s


1

Is the SlimGyro suitable for narrow boreholes?

Perfectly suited for tight clearances

The SlimGyro™ is the world's slimmest survey tool, featuring a true 25 mm diameter. In its centralized configuration, it weighs 5.20 kg with a length of 2360 mm, while the bullnose configuration reduces the length to 1390 mm and the weight to just 2.50 kg. This makes it effortless to deploy into narrow holes where standard tools cannot fit.


2

Can the SlimGyro survey in any orientation?

Yes, from perfect vertical to full horizontal

You are not restricted by downhole trajectories. Backed by high-end calibration, the SlimGyro™ is designed to operate from vertical to any orientation. It features multiple modes of operation, explicitly supporting all inclinations, continuous surveying, and multi-shot orientation.


3

What is the accuracy of this 25mm gyro?

Unmatched precision in a 25mm profile

The tool delivers an inclination accuracy of ±0.10° and an azimuth accuracy of ±0.50°. Additionally, it maintains a gyro toolface accuracy of ±0.50° and a position accuracy of <0.2% (2m/1000m), though this depends on the borehole profile and survey procedure. It is fully capable of handling a high rate range of ±1000°/s without losing precision.


4

What is the battery life during high-volume drilling?

100 hours on a single charge

Engineered for high rate and low power performance, the SlimGyro™ consumes only 0.2 W of power. Powered by a rechargeable NiMH battery, this efficiency gives the tool an extended battery charge of 100 hours, keeping your operation running without mid-shift charging delays.


5

How does the tool handle data management on site?

Through Bluetooth and the SurveySafe cloud system

The SlimGyro™ utilizes Bluetooth communication to sync data effortlessly. Data is collected via the Surveyor software, which runs on Windows 10 & 11. From there, data management is handled entirely by the SurveySafe cloud portal system. For harsh rig environments, it is recommended to operate the system using a Getac UX10, rugged tablet PC (MIL-STD-810G).
